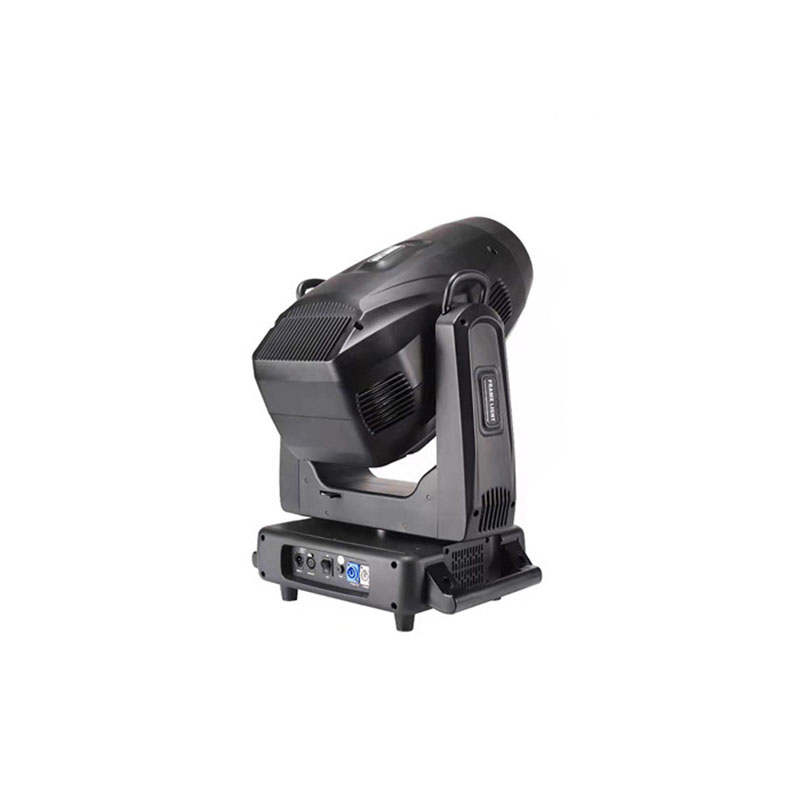

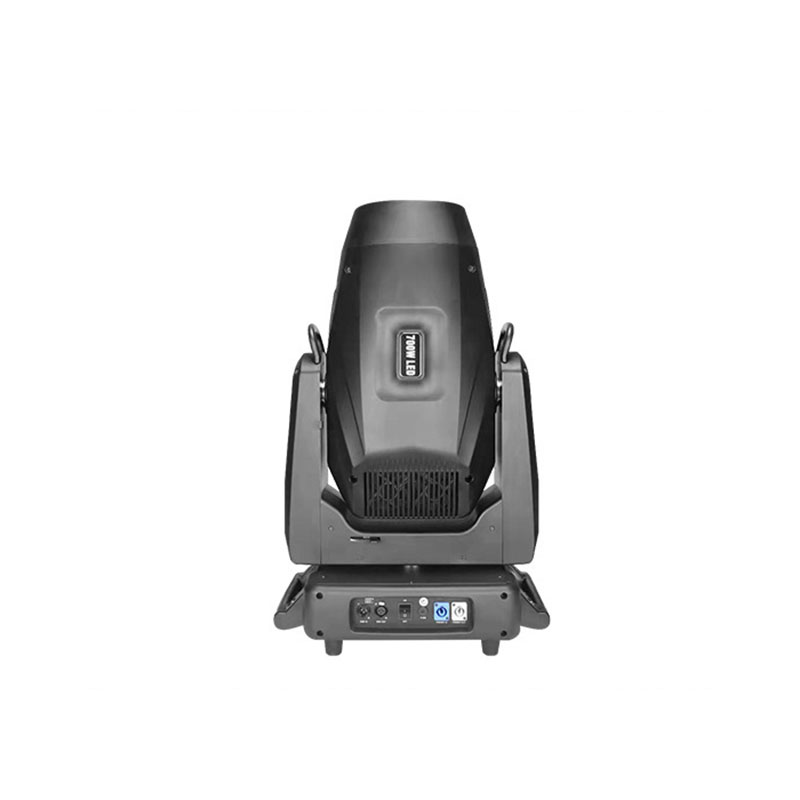

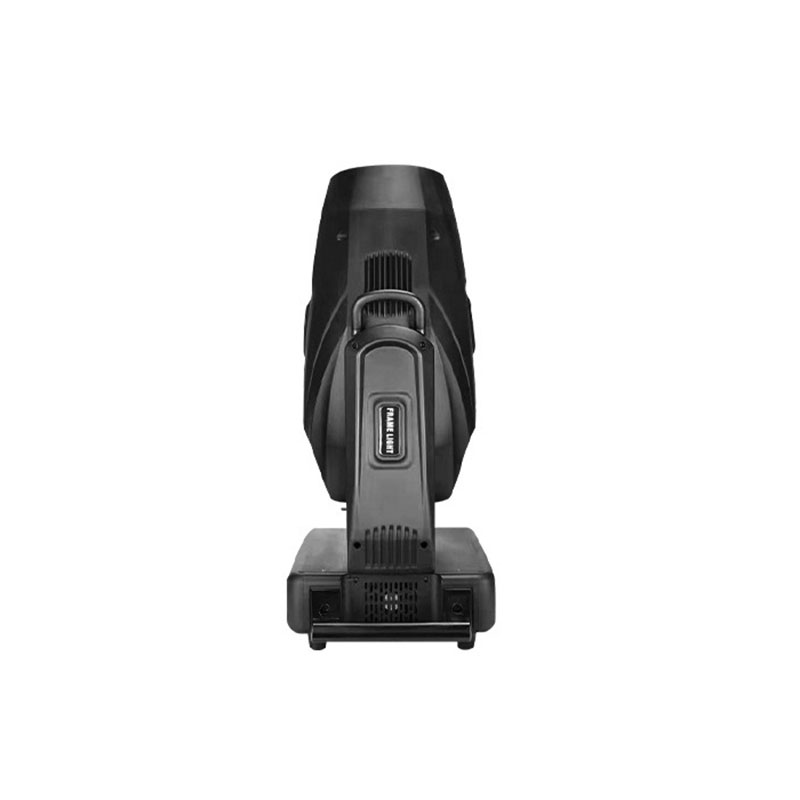

Name: BD700 Pattern Cutting Lamp
Model: BDBC700
Voltage: AC100~240V, 50/60Hz
Light source specification: 700W LED, 8000K
LED lifespan: 10000 hours
Color rendering index: 73-90 CRI adjustable
Focusing: Electronic Focusing (Autofocus)
Aperture: 5%~100% smooth adjustment
CTO: Independent Entry style CTO
Color: 7 colors+white light
Magnify: 5 °~55 °
Dimming: 0~100% linear dimming
Strobe: 0-20Hz, multiple flicker effects
Channel: 36CH
Atomization angle: 35 °~65 °
Control mode: DMX512, RDM, Artnet (optional), self-propelled, master-slave, voice control, built-in
Rotation angle of lamp body: horizontal 540 °, vertical 270 °
Pattern cutting: 4 sets of 8-way cutting blades, capable of cutting any shape, with a 90 ° rotation
CMY: Independent cut in CMY, linear CMY color switching, infinite color mixing
Prism disk: rotating 3 prisms+6 rows of mirrors, can rotate in both directions, can stack prisms, and has prism positioning function
Pattern plate: a fixed pattern plate with 8 patterns and white circles, a rotating pattern plate with 6 pattern pieces and white circles, with pattern shaking function, arbitrary positioning function, an effect plate with flame and flowing dynamic effects.
Display screen: LCD touch screen display
Product size: 51 * 34 * 80CM
Packaging size: 90.5 * 56 * 45.5CM
High Brightness Light Source: Using high-power light sources with extremely high brightness, suitable for use in large venues.

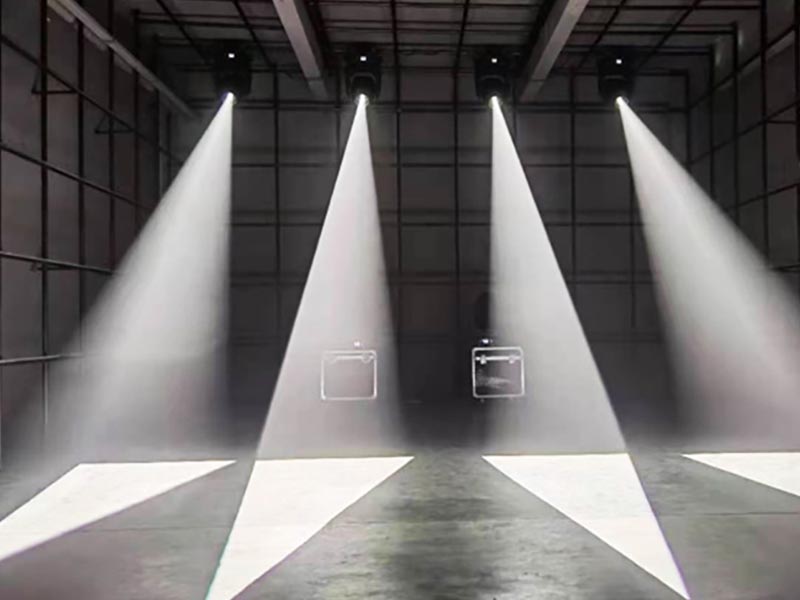

Pattern cutting function: Equipped with a high-precision cutting system, it can accurately cut the beam to form clear geometric shapes or complex patterns.

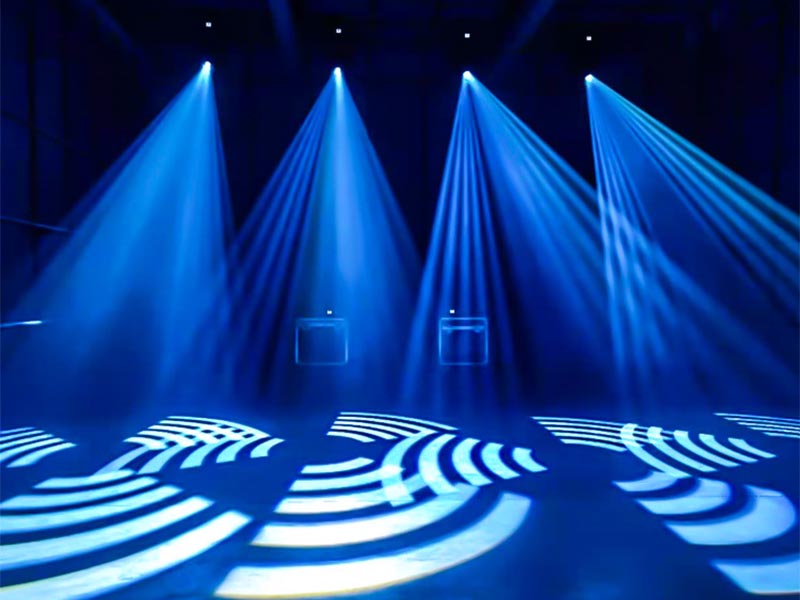

Rich pattern effects: Built in multiple pattern pieces and rotating patterns, capable of projecting complex light and shadow effects to meet creative needs.
High color reproduction: Equipped with a built-in color palette and CMY color mixing system, supporting full-color adjustment and high color reproduction.
Dynamic effects: Supports functions such as fast rotation, flicker, and dimming to enhance stage performance.
High precision optical system: using high-quality lenses and reflectors, the beam is uniform and focused accurately.
Silent design: Equipped with a low-noise motor and cooling system, suitable for use in quiet environments.
DMX control: Supports DMX512 protocol, making it easy to synchronize and control with other lighting devices.
Multi functional integration: integrating pattern projection, beam cutting, dyeing and other functions to meet various scene needs.
High precision cutting: The cutting system has high precision and can form clear geometric shapes, meeting the needs of high-end performances.
Multifunctionality: Integrating functions such as pattern design, cutting, and dyeing, reducing the number of devices and lowering costs.
High brightness output: The high-power light source makes it extremely bright, suitable for large venues and long-distance projection.
Strong flexibility: Different functions can be switched according to needs to adapt to various performance scenarios.
Easy to operate: DMX control makes operation simple and easy to integrate into existing lighting systems.
Strong durability: High quality materials and heat dissipation design, suitable for long-term high-intensity use.
Energy saving and efficient: using high-efficiency light sources, low energy consumption, high brightness, in line with energy-saving and environmental protection requirements.
Easy installation: The design is lightweight and supports multiple installation methods (such as lifting, bracket installation, etc.).
Large scale stage performance
Concert: Used for singer concerts to enhance stage effects.
Theater: Creating an atmosphere and highlighting actors in performances such as theater and dance.
Large scale events
Opening ceremony: used for sports events, exhibitions, etc. to enhance visual effects.
Award ceremony: Enhance the sense of ceremony through beam and color changes.
Wedding and banquet
Wedding: Used for stages and banquet halls to create a romantic atmosphere.
Banquet: Elevate the level of events in hotels or banquet halls.
Nightclubs and bars
Nightclub: Match with the rhythm of music to enhance the dynamic effect.
Bar: Used as a stage or bar counter to enhance the entertainment atmosphere.
Business activities
Product launch event: used for stage and exhibition areas to attract audience attention.
Shopping mall promotion: Increase attractiveness during promotional activities.
outdoor activities
Music Festival: Used for outdoor stages to enhance visual effects.
Celebration activities: Create a lively atmosphere during holiday celebrations.
Film and television shooting
Movie shooting: used for special effects and scene lighting.
TV programs: Enhance stage effects in variety shows and evening events.
Architectural lighting: used for exterior wall lighting or landscape lighting of buildings.
Baidao BD700 Pattern Cutting LampWith its high-precision cutting, high brightness output, multifunctional integration, and durability, it has become an ideal choice for high-end stage and large-scale performance lighting, capable of meeting the lighting needs of various complex scenes.
