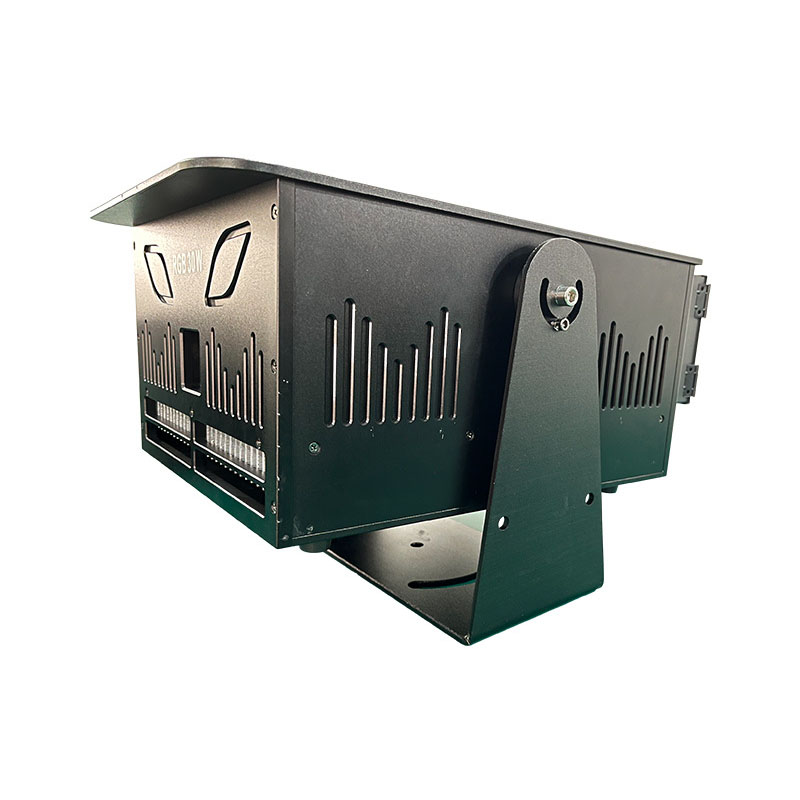

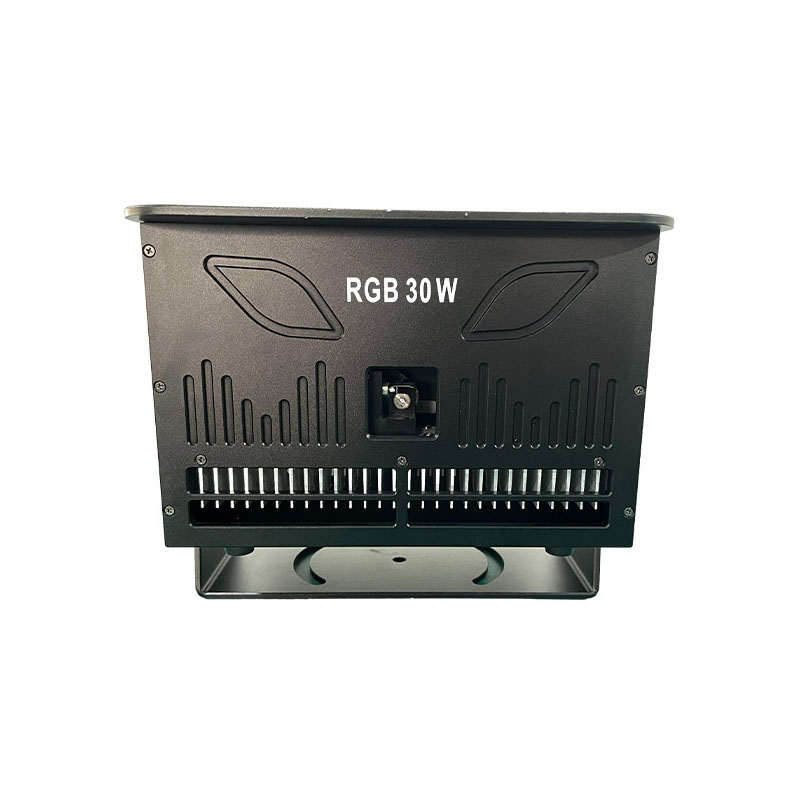

Name: BDL30 Waterproof animated laser light
Model: BDLA30
Voltage: AC110V-240V50/60HZ
Power consumption: ≤ 600W
Laser: Solid state semiconductor laser
Laser power: 30W (30W/40W/50W optional)
Laser configuration: R8W/G10W/B12W
Laser wavelength: DPSS, green wavelength: 520nm, red wavelength: 638nm, blue wavelength: 445nm
Light source lifespan: 10000 hours
Cooling method: air cooling
Working temperature: -40 ℃~50 ℃ (built-in temperature controller, automatic temperature adjustment)
Mirror angle: 60 standard scanning unit and scanning drive circuit, with a maximum speed of 40000 KPPS

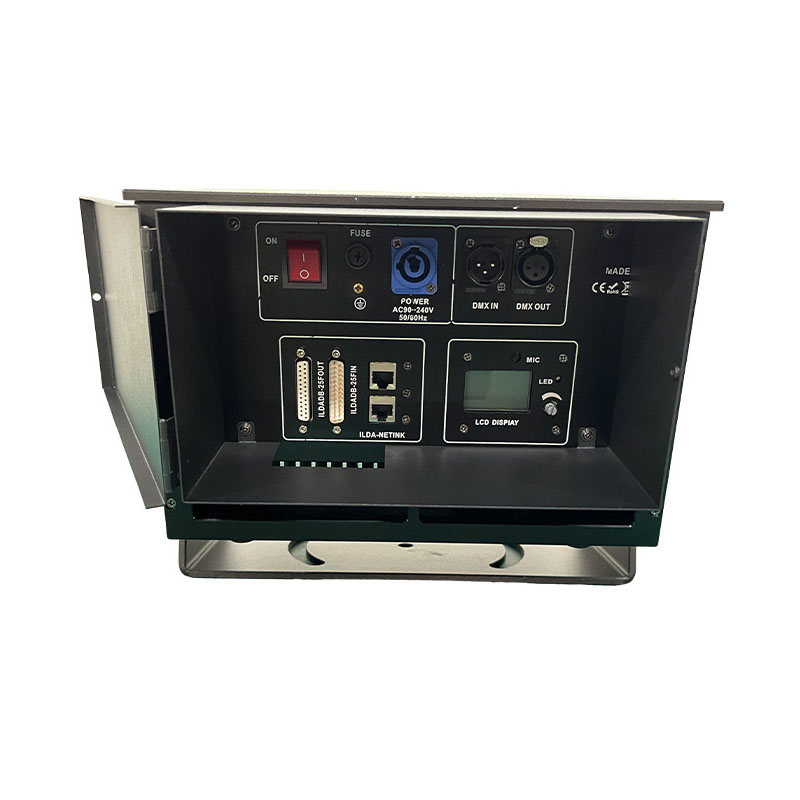

DMX control: Twelve channel control, with black field function, computer interface, compatible with ILDA standard computer laser performance
Software control: The full signal of ILDA is converted by electronic switches
Control mode: voice control/automatic DMX512 control/master-slave synchronization,
ILDA interface (can connect ISHOW software and imported pangolins; PANGOLIN. Phoenix software)

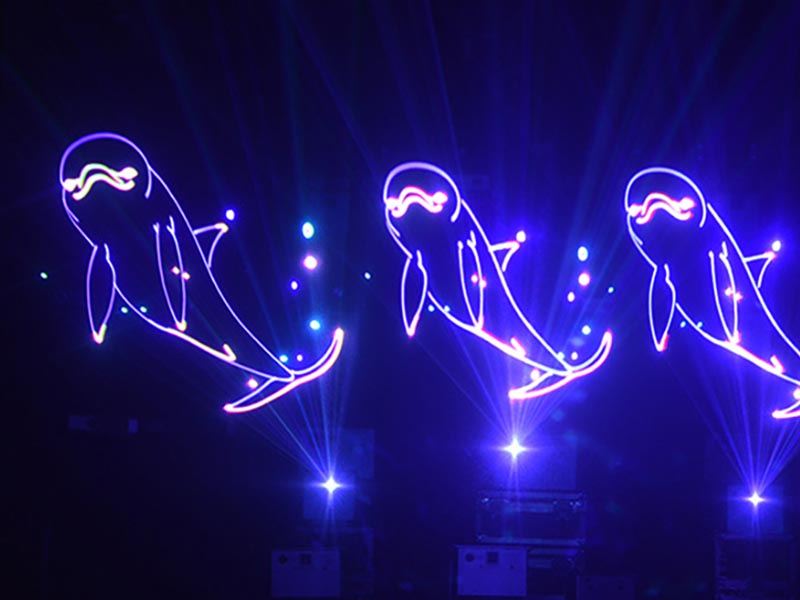

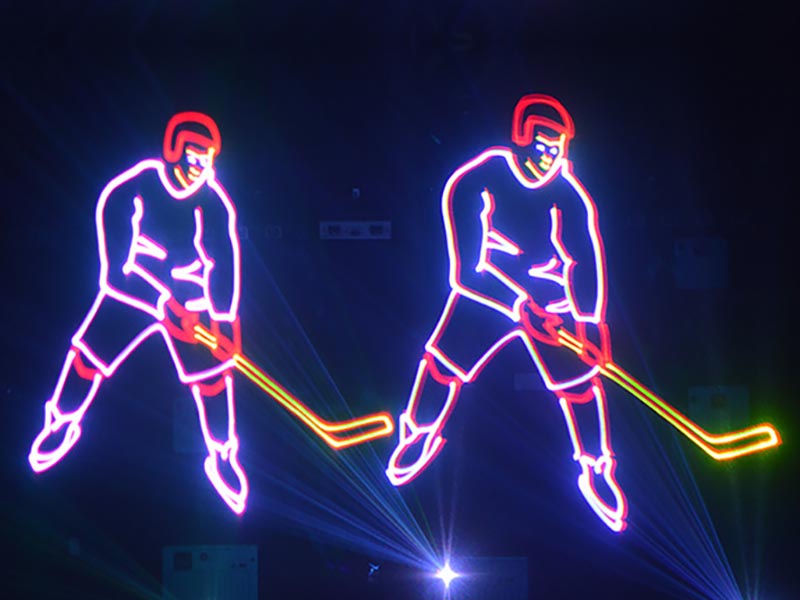

Animation Laser: Full color animation laser, using high-speed galvanometer scanning speed, with pattern effects such as pen breakage, flicker, rotation, rolling, movement, stretching, scaling, gradient drawing, speed, color, etc. It has a pattern size adjustment function with 128 built-in beams and animation patterns, and can be used for beam animation performances, laser advertising, and laser projection.
Features: Good heat dissipation and corrosion resistance
Size: 36.5 * 55.5 * 31CM
Waterproof rating: IP65
Applicable places: outdoor lighting, engineering construction, scenic landmarks, rooftops, parks and other various places
High power output: 30W power ensures bright light and excellent long-distance projection effect.
Waterproof design: It has waterproof function, suitable for outdoor use, and can adapt to various weather conditions.
Full color display: supports multiple color combinations, presenting rich visual effects.
Animation effects: Built in multiple animation modes, programmable control, and dynamic lighting display.
Laser technology: Adopting advanced laser technology, the light is concentrated and the colors are bright.
Remote control: Supports DMX512 control, making it easy to integrate into large lighting systems.
Strong durability: The shell is sturdy, the internal components are stable, and it is suitable for long-term operation.
High brightness and long-range: 30W power ensures high brightness and long-range projection, suitable for large venues.
All day use: Waterproof design ensures stable performance in outdoor environments.
Rich visual effects: Full color display and animation functions enhance visual impact.
Easy to operate: supports remote and programming control, and is flexible to use.
Energy saving and environmental protection: Laser technology is highly efficient and energy-saving, reducing energy consumption.
Long lifespan: Durable design reduces maintenance requirements and extends service life.
Stage performance

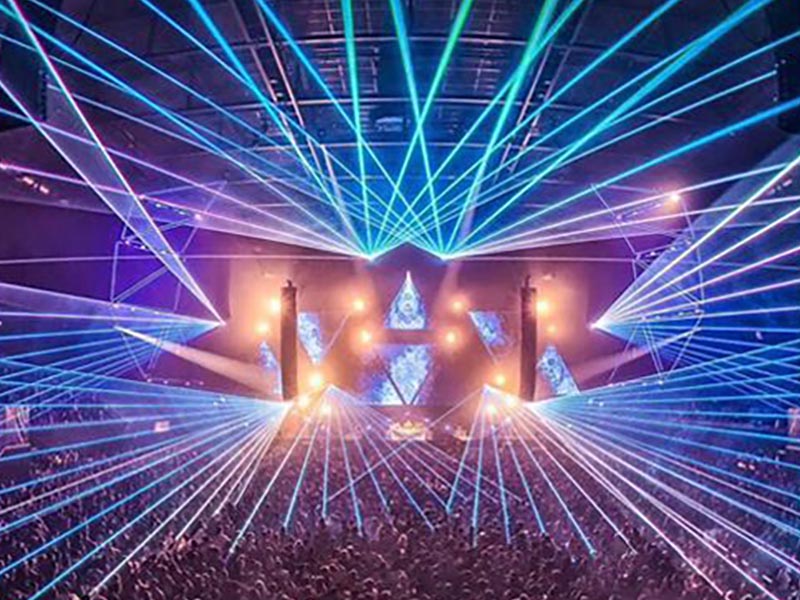

Concert: Used for singer concerts to enhance stage effects.
Theater: Creating an atmosphere and highlighting actors in performances such as theater and dance.
Large Events
Opening ceremony: used for sports events, exhibitions, etc. to enhance visual effects.
Award ceremony: Enhance the sense of ceremony through beam and color changes.
Wedding and banquet
Wedding: Used for stages and banquet halls to create a romantic atmosphere.
Banquet: Elevate the level of events in hotels or banquet halls.
Commercial activities
Product launch event: used for stage and exhibition areas to attract audience attention.
Shopping mall promotion: Increase attractiveness during promotional activities.
outdoor activities
Music Festival: Used for outdoor stages to enhance visual effects.
Celebration activities: Create a lively atmosphere during holiday celebrations.
Film shooting
Movie shooting: used for special effects and scene lighting.
TV programs: Enhance stage effects in variety shows and evening events.
Urban lighting

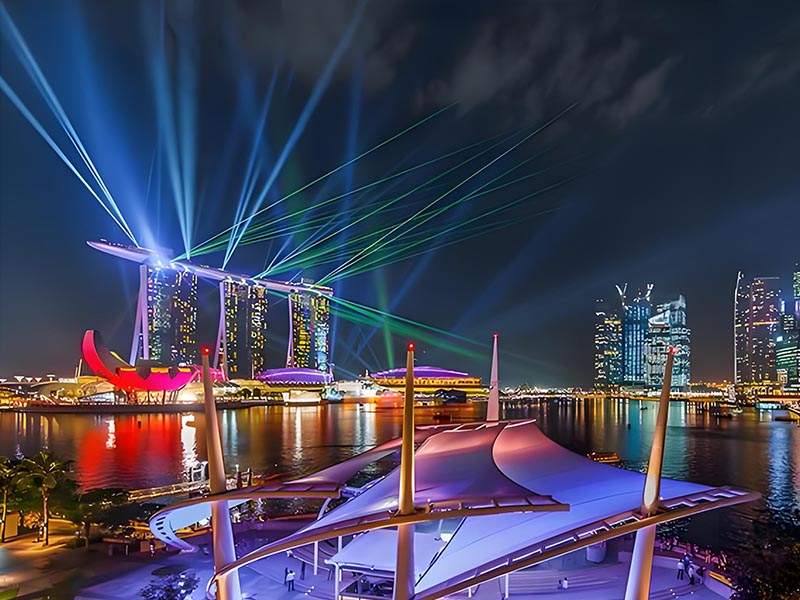

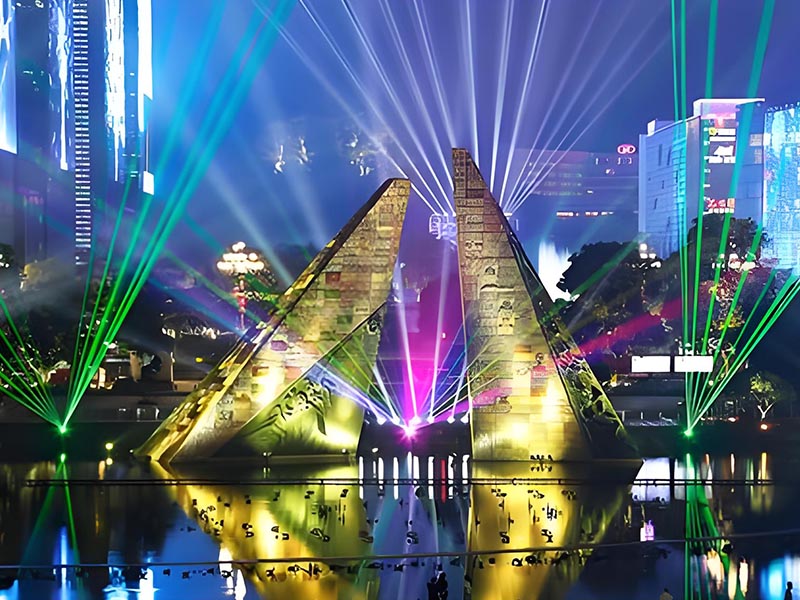

Outdoor architecture: used for landmark buildings, scenic spots, etc., to create light and shadow shows.
Urban lighting: presenting dazzling visual effects such as dots, lines, graphics, and text in the urban night sky with lasers.
Festival Celebration
Spring Festival/Yuanxiao (Filled round balls made of glutinous rice-flour for Lantern Festival): used for light show and decoration to add festival atmosphere.
Christmas: Used for Christmas trees and decorative lighting to create a festive atmosphere.
aquashow

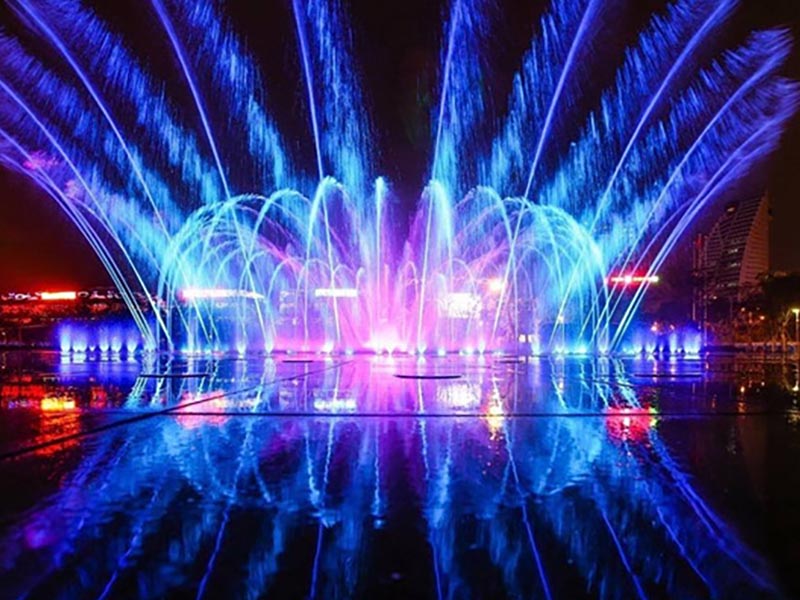

Fountain Show: Combined with the fountain, providing lighting effects.
Water Stage: Lighting and special effects used for water performances.
Baidao BDL30 Waterproof animated laser lighttWith high power, waterproof, full-color display, and animation capabilities, it is suitable for various outdoor and large venues, providing excellent visual effects and stable performance.
