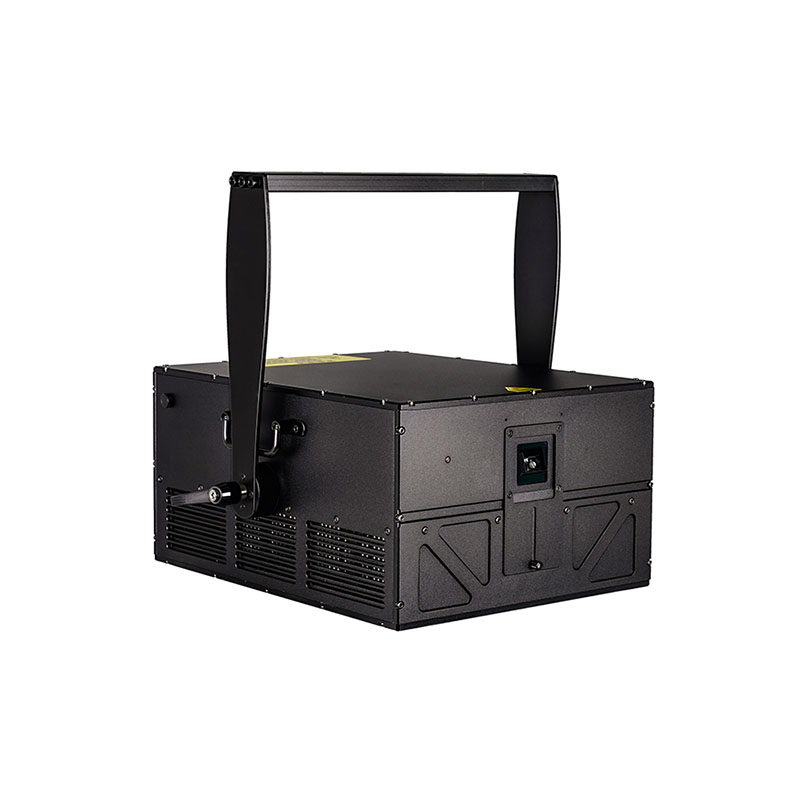

Name: BDLTS60 Waterproof Full Color Animated Laser Light
model: BDLATS60
Voltage: AC100V~240V 50/60HZ
Power consumption: ≤ 800W
Laser: Solid state semiconductor laser
Laser power: 60W
Laser configuration: R16W/G18W/B26W
Laser wavelength: DPSS, Red light wavelength: 638nm, green light wavelength: 520nm, blue light wavelength: 445nm
Light source lifespan: 10000 hours
Scanning system: 40KPPS high-speed scanning galvanometer
Laser modulation: analog modulation
Built in software: Built in pangolin Pangolin FB4 control software
Control mode: self-propelled DMX512、ILDA 、 Ethernet (computer control)

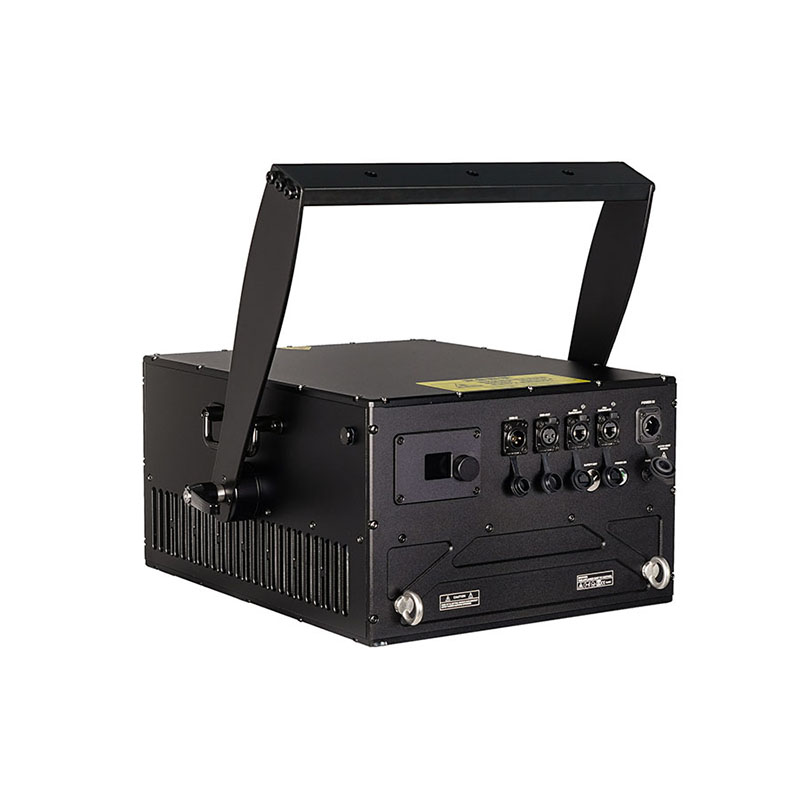

Control interface: waterproof power input/output interface, waterproof DMX512 input/output interface, waterproof Ethernet two-way interface
DMX channel: 27CH/52CH
Animated Laser: Built in 160 patterns (7 sets x 20) and 20 animations (1 set x 20), unlimited storage on SD card, can select scenes through DMX or laser show on SD card
Electronic control technology: ① RDM data bidirectional transfer ② SD card online upgrade ③ intelligent temperature control system ④ DMX512 upgrade
DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient, color change, and resizing
Working temperature: -20 ℃~45 ℃ (built-in temperature controller, automatic temperature adjustment)
Protection level: IP65 protection level
Suitable venues: concerts, sports stadiums, advertising promotions, electronic music, live performances, etc
Size: 52 * 38 * 49cm
Weight: 33kg
High power laser source: 60W laser output, high brightness, strong beam penetration, stunning visual effect.
Full color display: Supports RGB full-color display, with rich colors and the ability to present multiple colors and patterns.
Animation effects: Built in multiple animation effects, such as beam scanning, graphic transformation, text display, etc., with excellent dynamic effects.
Waterproof design: IP65 high protection level, suitable for outdoor use all day long, rain and dust proof.
Diverse control methods: Supports multiple control methods such as DMX512, voice control, master-slave synchronization, etc., with flexible operation.
Good heat dissipation: Efficient heat dissipation design ensures long-term stable operation.
Stunning visual effects: High power output, high brightness combined with full-color animation bring a stunning visual experience.
Full color display: Supports RGB full-color display, with rich colors that can present multiple colors and gradient effects, enhancing the visual experience.
Animation Effects: Built in multiple animation modes, supporting dynamic patterns, text, and beam effects to enhance stage performance.
Waterproof design: It has waterproof function, adapts to outdoor environments, and ensures normal operation in harsh weather conditions such as rain and snow.
Strong durability: Made of high-quality materials, the structure is sturdy and suitable for long-term use, especially in outdoor places.
Easy to operate: Supports DMX512 control, easy to synchronize with other lighting devices, simple to operate, suitable for professional lighting technicians.
Energy saving and environmental protection: using efficient laser light sources, low energy consumption, long lifespan, and reducing maintenance and replacement costs.
Widely applicable: Suitable for various occasions such as concerts, music festivals, weddings, commercial events, etc., to meet different needs.
Safe and reliable: Compliant with laser safety standards, equipped with protective measures to ensure safe use.
Stage performance
Concert: Used for singer concerts to enhance stage effects.
Theater: Creating an atmosphere and highlighting actors in performances such as theater and dance.
Large scale events
Opening ceremony: used for sports events, exhibitions, etc. to enhance visual effects.
Award ceremony: Enhance the sense of ceremony through beam and color changes.
Wedding and banquet
Wedding: Used for stages and banquet halls to create a romantic atmosphere.
Banquet: Elevate the level of events in hotels or banquet halls.
Business activities
Product launch event: used for stage and exhibition areas to attract audience attention.
Shopping mall promotion: Increase attractiveness during promotional activities.
outdoor activities
Music Festival: Used for outdoor stages to enhance visual effects.
Celebration activities: Create a lively atmosphere during holiday celebrations.
Film and television shooting
Movie shooting: used for special effects and scene lighting.
TV programs: Enhance stage effects in variety shows and evening events.
Urban lighting
Outdoor architecture: used for landmark buildings, scenic spots, etc., to create landmark landscapes.
Urban lighting: presenting dazzling visual effects such as dots, lines, graphics, and text in the urban night sky with lasers.
Festival Celebration
Spring Festival/Yuanxiao (Filled round balls made of glutinous rice-flour for Lantern Festival): used for light show and decoration to add festival atmosphere.
Christmas: Used for Christmas trees and decorative lighting to create a festive atmosphere.
aquashow
Fountain Show: Combined with the fountain, providing lighting effects.
Water Stage: Lighting and special effects used for water performances.
Baidao BDLTS60 Waterproof Animated Laser LightWith high brightness, full-color display, animation effects, and waterproof design, it is widely used in stage performances, architectural projections, entertainment venues, commercial activities, and outdoor advertising, providing a stunning visual experience.
